3D CAD Solution for Environmental, Waste and Water Technology

The Smap3D Plant Design Solution was developed for increased production and the fulfilment of the user's individual requirements. Smap3D Piping is at the hub of fast, automated designing of 3D pipeline systems and can be implemented in every area of environmental and waste water technology.

Smap3D Plant Design is an ultra-modern and innovative software solution which can be fully integrated into different 3D CAD systems.

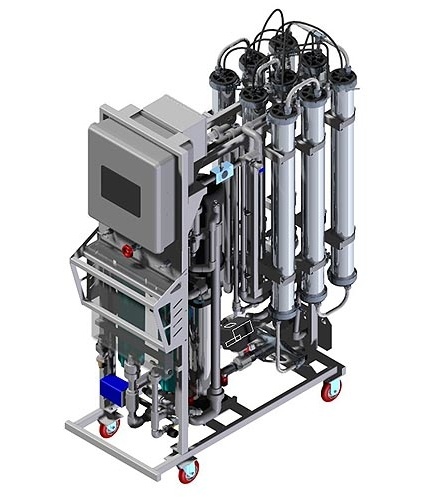

In environmental and waste water technology, our Smap3D Plant Design solution for 2D flow diagrams, the 3D plant construction and pipeline istometric drawings can be utilized for design of multiple types of plants:

  • Biogas plants
  • Gas cleaning plants
  • Water treatment plants
  • Water de-aeration plants
  • Sewage treatment plants
  • Distillation plants
  • Filtration plants
  • Softening plants
  • Desalination plants
  • Cleaning plants
  • High-purity water plants
  • Reverse osmosis plants
  • and much more

Better planning in all areas with Smap3D Plant Design:

P&IDPipingPipe specificationsIsometricSteelSteel to NCPDM/ERP-ConnectorElectricPipe productions3D-Bending SimulationStress Simulation3D-Laserscans

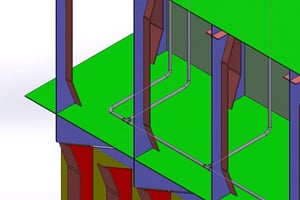

Plant Design with Smap3D explained in three minutes
