3D CAD Solution for Food and Beverage Industry

Smap3D Plant Design is the solution for increased production and the fulfilment of the individual user's extensive requirements in 3D plant construction. In every area of the food and beverage industry, Smap3D Plant Design can be implemented for creation of 2D flow diagrams and for 3D-CAD construction of plants, standing as it does, at the hub of fast and automated 3D pipeline system design.

Smap3D Plant Design, an ultra-modern and innovative software solution, is completely integrated into 3D CAD systems. Using our solution Smap3D Plant Design, diverse types of plants can be constructed for the food and beverage industry:

  • Brewing water treatment plants
  • Sugar dissolving plants
  • Beverage degasification plants
  • Beverage mixing plants
  • Water treatment plants
  • Cleaning-In-Place plants
  • High-purity water plants

and much more …

Smap3D Plant Design for hygienic and aseptic piping systems

In this tutorial you will learn how easily you can design and optimize hygienic and aseptic piping systems according to DIN 11851 and DIN 11864, using Smap3D Plant Design.



References for food and beverage industry:

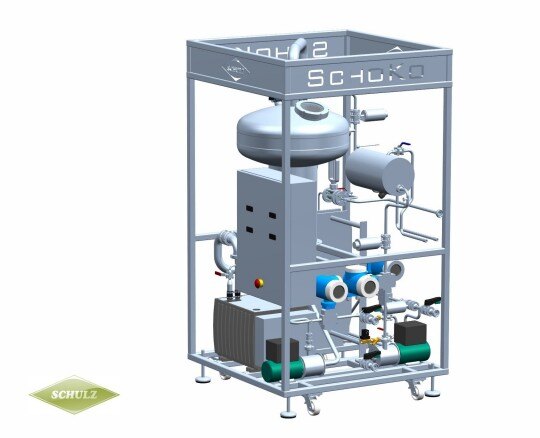

KASPAR SCHULZ, Germany

Better planning in all areas with Smap3D Plant Design:

P&IDPipingPipe specificationsIsometricSteelSteel to NCPDM/ERP-ConnectorElectricPipe productions3D-Bending SimulationStress Simulation3D-Laserscans

Plant Design with Smap3D explained in three minutes
